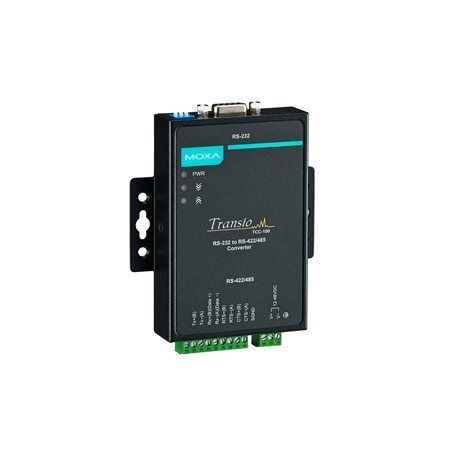

moxa TCC-100-100I Series Industrial RS-232 to RS-422-485 converters with optional 2 kV isolation

Name: moxa TCC-100-100I Series Industrial RS-232 to RS-422-485 converters with optional 2 kV isolation
Brand: DYNALOG INDIA LIMITED
Price: 7720 INR
Availability: InStock

Price 7720 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

moxa TCC-100-100I Series Industrial RS-232 to RS-422-485 converters with optional 2 kV isolation Specification

Operating Temperature
-10 to 60C (standard), -40 to 85C (wide temp model)

Size
Compact

Interface Type
RS-232/RS-422/RS-485

Power Supply
9 to 30 VDC, 110 to 220 VAC via external adapter

Model
TCC-100, TCC-100I

Features
Optional 2 kV isolation (TCC-100I), LED indicators for TxD/RxD, terminal block and DB9 connectors

Range
Up to 1.2 km (RS-422/485)

Mounting Type
DIN-rail, wall mount

Connectivity Type
Wired Serial

Product Type
RS-232 to RS-422/485 Converter

Application
Industrial Serial-to-Serial Communication Conversion

Dimension (L*W*H)
67 x 100 x 22 mm

Material
Metal housing

Weight
140 g

Capacity
Supports up to 32 RS-485 devices

Coverage Area
Up to 1.2 km (RS-422/485, depends on baud rate and cable quality)

Input Impedance
RS-485/422: 12 k

Serial Line Protection
15 kV ESD protection

Humidity
5-95% RH

Isolation Protection
2 kV (TCC-100I model only)

LED Indicators
PWR, TxD, RxD

Flow Control
Automatic data direction control for RS-485

Data Rate
Up to 921.6 kbps

Power Consumption
2.4 W (max)

RS-232 Signal
TxD, RxD, GND

RS-485/422 Signal
T+, T-, R+, R-, GND

moxa TCC-100-100I Series Industrial RS-232 to RS-422-485 converters with optional 2 kV isolation Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
2-5 Days

Main Domestic Market
All India

About moxa TCC-100-100I Series Industrial RS-232 to RS-422-485 converters with optional 2 kV isolation

Discover MOXA TCC-100/100I Series, an acclaimed solution for industrial serial-to-serial communication. With competitive pricing and prodigious features, this converter transforms RS-232 signals to RS-422/485, supporting pristine data rates up to 921.6 kbps. The TCC-100I model offers immaculate 2 kV isolation protection, safeguarding your equipment. Designed with a robust metal housing, it covers ranges up to 1.2 km and endures harsh environments (-40 to 85C). Shop now and equip your operations with this terrific, compact converter-ideal for challenging industrial needs across India.

Advanced Applications for Rugged Environments

Moxa TCC-100-100I Series converters excel in demanding industrial settings, including manufacturing plants, automation systems, and transportation networks. Their immaculate metal construction and compact design ensure reliable performance and easy setup. Prodigious features like 15 kV ESD serial line protection, optional 2 kV isolation, and automatic data direction control provide a secure and efficient solution for serial communication. Suitable for use with up to 32 devices, these converters are tailored for industrial-grade reliability and seamless integration.

Fast Delivery and Market Reach: Secure Shopping Experience

We ensure rapid delivery of the Moxa TCC-100-100I Series across the domestic market and for export. Benefit from secure shipping protocols and the option for samples on request-contact today for details. As a trusted supplier, trader, manufacturer, and service provider, we strive for timely dispatch and charging only standard fees. Shop confidently knowing our competitive pricing is paired with excellent, reliable customer service and support throughout India and beyond.

FAQ's of moxa TCC-100-100I Series Industrial RS-232 to RS-422-485 converters with optional 2 kV isolation:

Q: How does the MOXA TCC-100-100I Series converter enhance industrial communication?

A: The converter provides reliable transformation between RS-232 and RS-422/485 signals, enabling seamless data exchange across industrial systems, with added safety features such as optional 2 kV isolation and 15 kV ESD protection for critical applications.

Q: What is the main benefit of the TCC-100I model's 2 kV isolation?

A: The TCC-100I's 2 kV isolation helps safeguard sensitive equipment from harmful voltage surges and ground loops, making it ideal for environments where electrical interference is a concern.

Q: Where can the MOXA TCC-100-100I Series be installed?

A: These converters can be mounted on DIN-rails or walls, fitting well into various industrial settings like factories, automation hubs, and transport facilities due to their compact and robust design.

Q: What is the typical delivery time and do you provide samples?

A: Delivery is prompt and tailored for both domestic and export markets. Secure shipping is standard, and qualified customers can request samples for evaluation before making a final purchase.

Q: What types of serial devices are supported and how many can be connected?

A: The TCC-100-100I Series supports up to 32 RS-485 devices, allowing flexible installation with a broad range of wired serial communication equipment.

Q: How can I purchase or get support for these converters in India?

A: You may contact authorized manufacturers, suppliers, or traders across India to order the TCC-100-100I. Customer service and technical support are readily available to assist with selection or installation inquiries.
