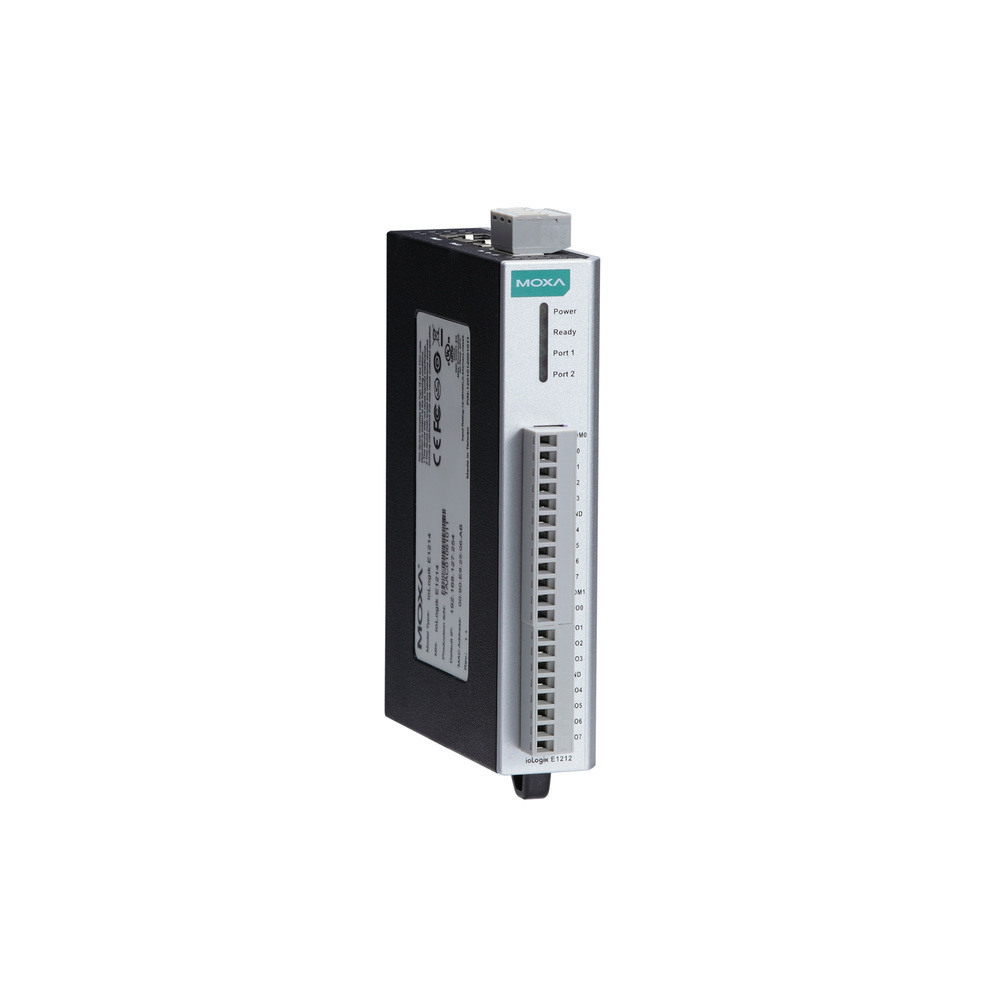

iologik-e1200-series Ethernet remote IO with 2-port Ethernet switch

Send Inquiry

Request To Call Back

iologik-e1200-series Ethernet remote IO with 2-port Ethernet switch

Get a Price/Quote

MOQ : 1 Unit

iologik-e1200-series Ethernet remote IO with 2-port Ethernet switch Specification

Product Type
Ethernet Remote I/O Module

Number of Channels
8/16/32 channels (varies by model)

Call Control Protocol
Modbus/TCP, TCP/IP, UDP

Frequency (MHz)
Not Applicable (digital IO device)

Storage Temperature
-40C to 85C

Network Connection Methods
Ethernet, Daisy Chain with 2-port Switch

Power
12 to 48 VDC

Dimension (L*W*H)
115 x 40 x 70 mm (approx)

Weight
~250 g

Size
Compact

No. of Ports/Pins
2 Ethernet Ports, 16/32 IO Channels (varies by model)

Usage
Remote Digital/Analog IO Acquisition and Monitoring

Material
Aluminum alloy and high-strength plastic

Led Indicator
System, Communication, Channel Status LEDs

Range
Up to 100 meters over Ethernet

Power Supply
External, 12-48 VDC

Color
Black and white

Height
115 mm

Configuration
Web console, Serial console

Analog Input Resolution
12/16-bit (for analog models)

Power Consumption
<3 W

Alarm Function
Configurable DI/DO alarm output

Relay Output
Up to 2 A at 30 VDC/250 VAC (Relay Output Models)

Protection
Isolation on power and IO channels

Input Voltage Range
12-48 VDC

Mounting
DIN-rail or wall mounting

IP Rating
IP30

Ethernet Interface
2 x 10/100 Mbps RJ45 ports with auto MDI/MDIX

Compatible Software
MXIO, Active OPC Server support

Firmware Upgrade
Web-based firmware upgrade

Operating Temperature
-10C to 60C

Digital Input Type
Sink or source selectable

Digital Output Type
Sink/Source, Relay (model-dependent)

Input Type
Digital Input, Digital Output, Analog Input models available

iologik-e1200-series Ethernet remote IO with 2-port Ethernet switch Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
2-5 Days

Main Domestic Market
All India

About iologik-e1200-series Ethernet remote IO with 2-port Ethernet switch

Get spotlight-ready control and versatility with the must-have iologik-e1200-series Ethernet remote IO. Engineered for virtuoso performance in industrial settings, this masterful remote IO features a towering 2-port 10/100 Mbps Ethernet switch, supporting daisy-chain networking. Choose from digital input, digital output, or analog input models, each delivering isolation protection and robust alarm functions. With flexible DIN-rail or wall mounting, an intuitive web console, and IP30-rated durability, this solution is built for remote digital/analog IO acquisition. Experience a new standard in centralized monitoring and machine integration.

Applications, Features, and Surface Utility of iologik-e1200-series

Designed for precision, the iologik-e1200-series is used for remote acquisition and monitoring of digital and analog IO signals, fitting seamlessly into automation systems. Ideal for industrial equipment, factory floor, or process monitoring applications, it offers robust aluminum alloy protection, reliable isolation, and configurable alarms. Its 2-port Ethernet switch enables flexible connectivity across many installation surfaces. With selectable sink/source digital input/output options and web-based firmware upgrades, this machine is packed with powerful, adaptable features.

Exports, Supply, and Delivery of iologik-e1200-series Remote IO

With stock ready for dispatch and assured supply ability, the iologik-e1200-series serves both the domestic market and international clients. Our streamlined transport services enable timely delivery, typically within days, ensuring projects see minimal downtime. Whether you require a single unit or bulk orders for system expansion, consistent supply keeps your operations moving smoothly. Expect responsive support and reliable logistics for every shipment, upholding service excellence in both local and global markets.

FAQ's of iologik-e1200-series Ethernet remote IO with 2-port Ethernet switch:

Q: How can I configure the iologik-e1200-series Ethernet remote IO for my application?

A: Configuration is easily managed via the web console or serial console, enabling users to set alarm functions, network parameters, and IO modes to match specific monitoring or control requirements.

Q: What are the main usage benefits of the iologik-e1200-series in industrial environments?

A: The iologik-e1200-series offers masterful performance with reliable isolation, configurable alarms, and flexible mounting options. Its design optimizes real-time monitoring, simplifies integration, and enhances network redundancy with daisy-chainable Ethernet ports.

Q: Where can the iologik-e1200-series be installed?

A: This compact remote IO is versatile and supports both DIN-rail and wall mounting, making it suitable for control panels, machinery, or equipment racks in various industrial environments.

Q: What protection features does the iologik-e1200-series provide?

A: It is engineered with IP30-rated enclosures and isolation on both power and IO channels to safeguard against electrical disturbances and environmental hazards commonly found in industrial settings.

Q: How does the firmware upgrade process work for the iologik-e1200-series?

A: Firmware can be upgraded directly via the web console, ensuring the device stays current with the latest features and security patches with minimal operational interruption.

Q: When should I choose a digital input, digital output, or analog input model?

A: Select a model based on sensor types and automation needs. Digital IO models suit on/off signal monitoring or control, while analog input models handle variable sensors for detailed data acquisition.
